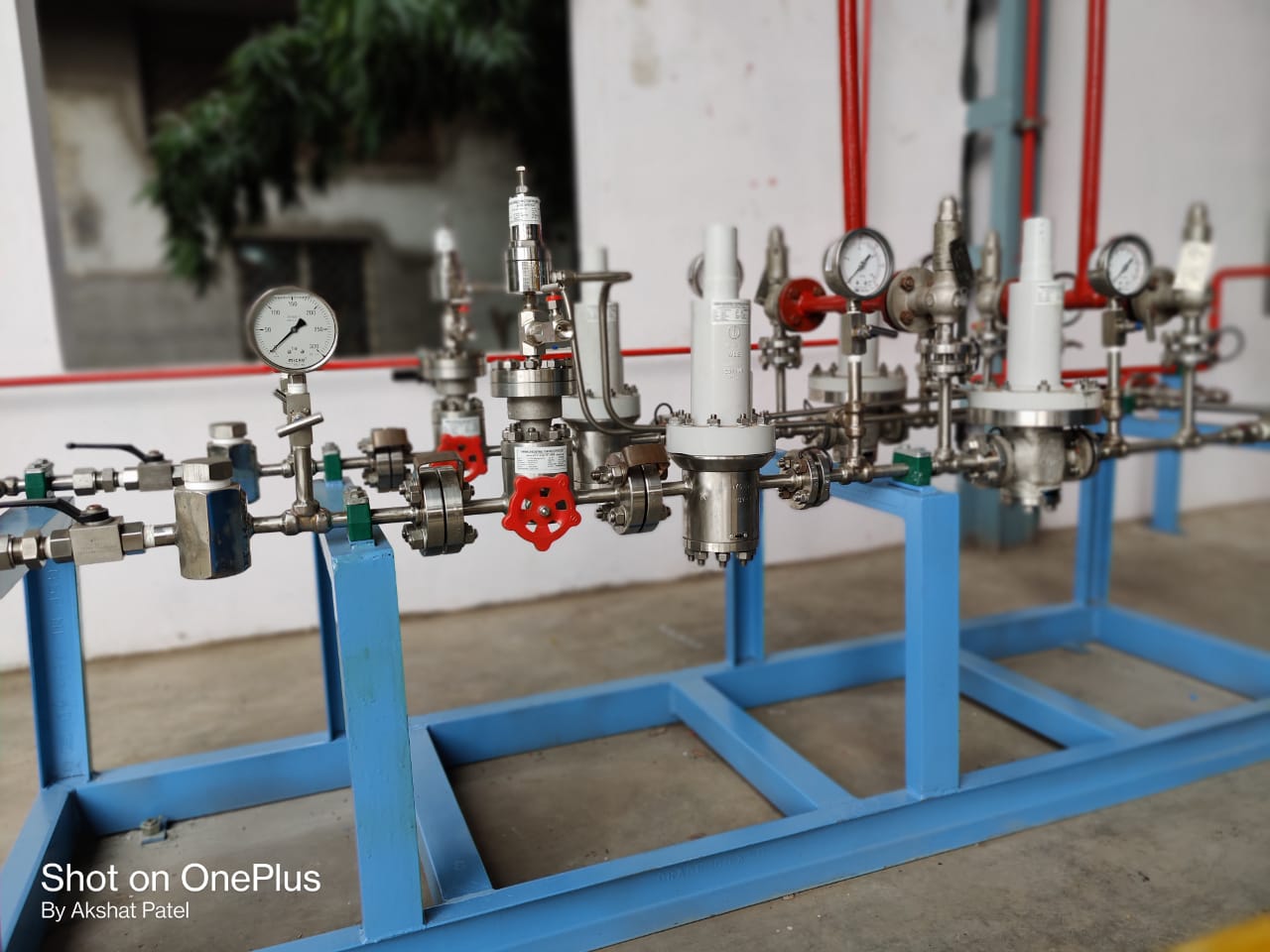

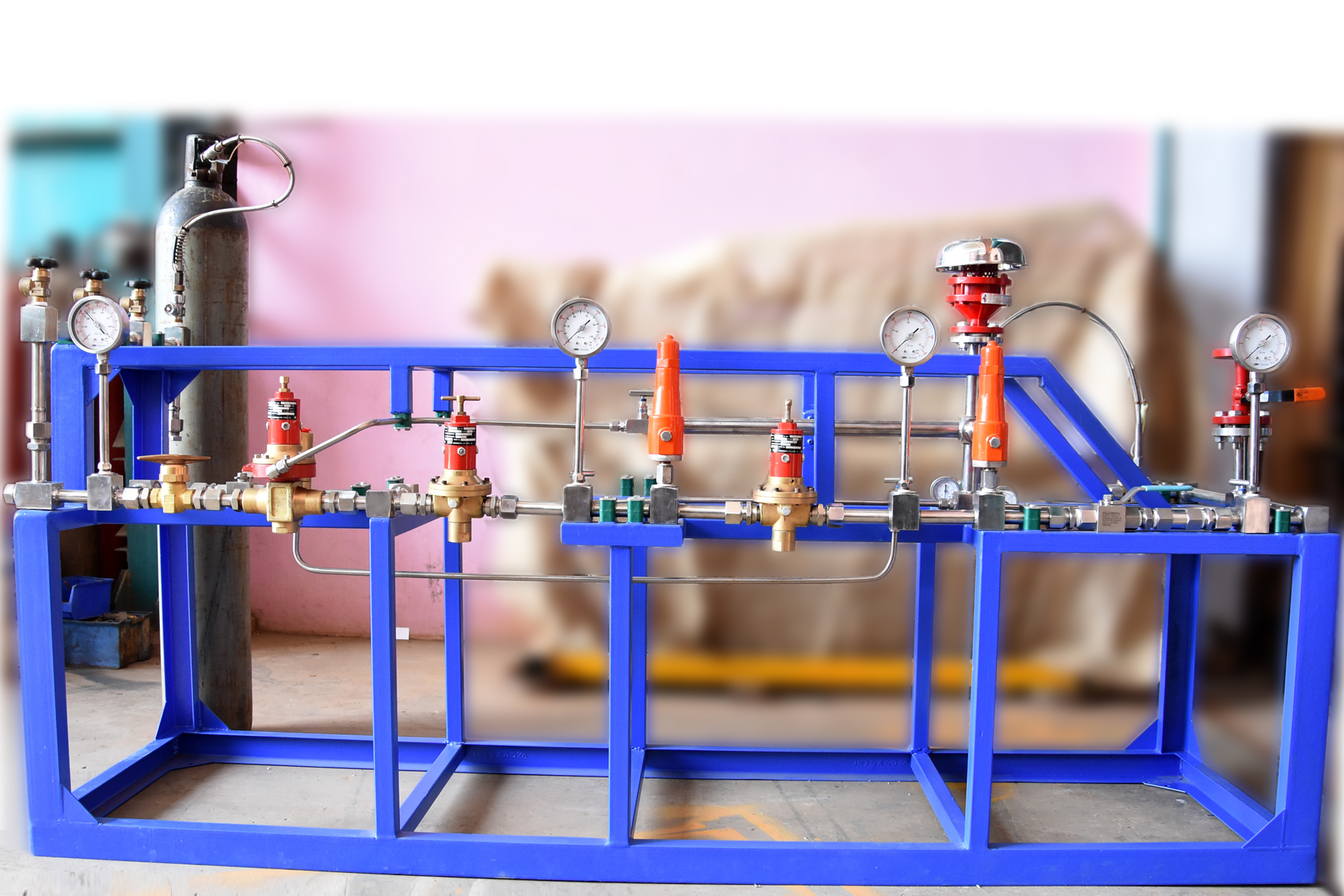

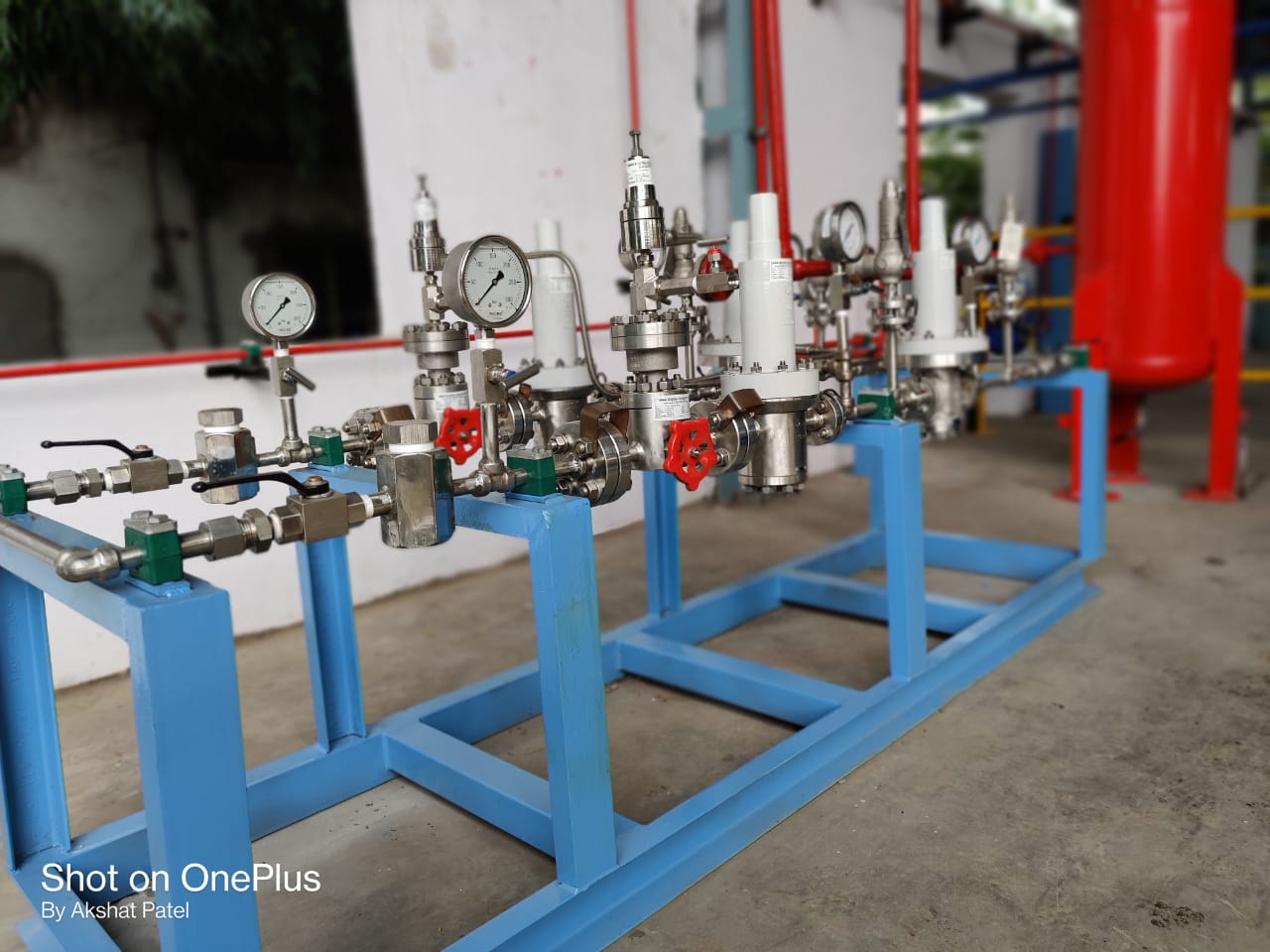

Hydrogen Gas Pressure Reducing Skid

Features

HYDROGEN Pressure Reducing unit, which will reduce the pressure from 250 bar (g) (HYDROGEN Cascades) to Filling Pipe line network. The scope of work is limited to the HYDROGEN Pressure Reducing skid, which is a double stream pressure regulating station equipped with inlet manifold header, Gas Master Valve, Gas Filter, Pressure regulators, Safety valve, Pressure Gauges, Isolation valve And Frame structure Ready to use in condition.
Gas receiving from 200 bar(g) to 2 bar(g).
Pressure Reduction unit to reduce the pressure from 200 Bar(g) to 10 Bar(g) to a outlet pressure of 2 Bar(g) with the help of Pressure Regulators along with Slam Shuts. Instrumentation and controls. Electrical items including local panel.
The components and equipments being installed shall be of a reputed make and the equipments shall conform in all respects to high standards of engineering, design, workmanship and shall meet all requirements as per the relevant standards.
All the components and equipments will also meet the Technical Standards/Specifications.
